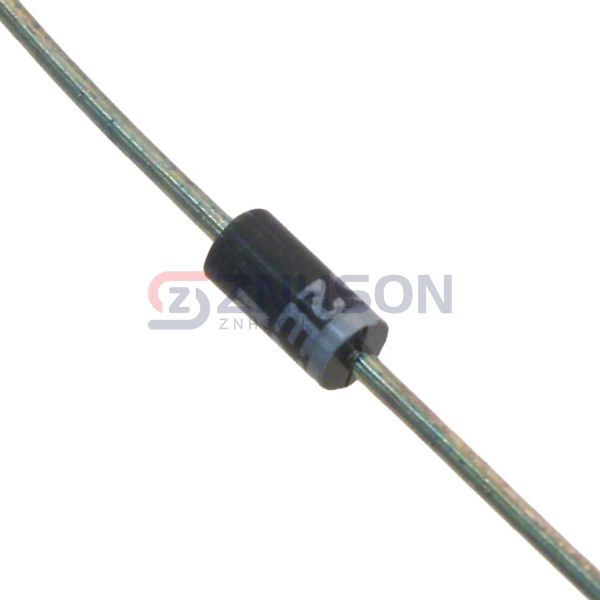

1N5954DG
Microsemi Corporation
Microsemi Corporation
DIODE ZENER 160V 1.25W DO204AL
$8.62
Available to order
Reference Price (USD)
1+
$8.62500
500+
$8.53875
1000+
$8.4525
1500+
$8.36625
2000+
$8.28
2500+
$8.19375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5954DG by Microsemi Corporation is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N5954DG is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 160 V
- Tolerance: ±1%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 700 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 121.6 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-204AL (DO-41)
