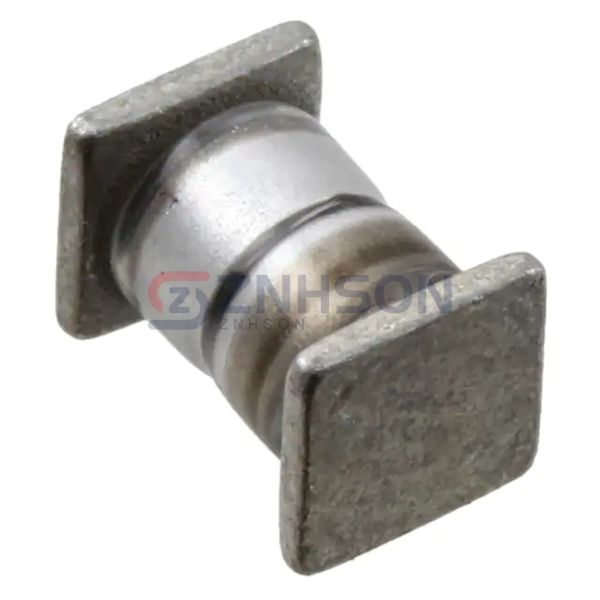

1N6864US/TR
Microchip Technology
Microchip Technology
DIODE SMALL-SIGNAL SCHOTTKY
$155.55
Available to order
Reference Price (USD)
1+
$155.55000
500+
$153.9945
1000+
$152.439
1500+
$150.8835
2000+
$149.328
2500+
$147.7725
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N6864US/TR by Microchip Technology is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the 1N6864US/TR ensures long-term reliability even in harsh operating conditions. Trust Microchip Technology for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 700 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 150 µA @ 80 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, B
- Supplier Device Package: B, SQ-MELF
- Operating Temperature - Junction: -65°C ~ 125°C
