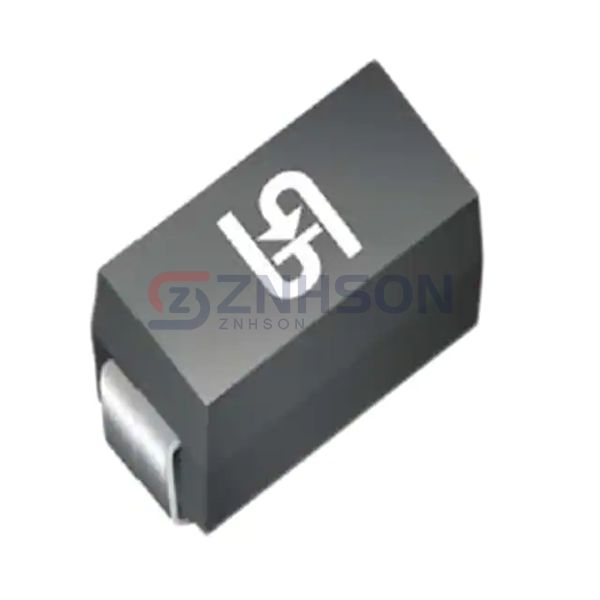

1PGSMA160Z
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 160V 1.25W DO214AC
$0.12
Available to order
Reference Price (USD)
1+
$0.11594
500+
$0.1147806
1000+
$0.1136212
1500+
$0.1124618
2000+
$0.1113024
2500+
$0.110143
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1PGSMA160Z from Taiwan Semiconductor Corporation is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 1PGSMA160Z is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 160 V
- Tolerance: ±5%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 1.1 kOhms
- Current - Reverse Leakage @ Vr: 1 µA @ 121.6 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
