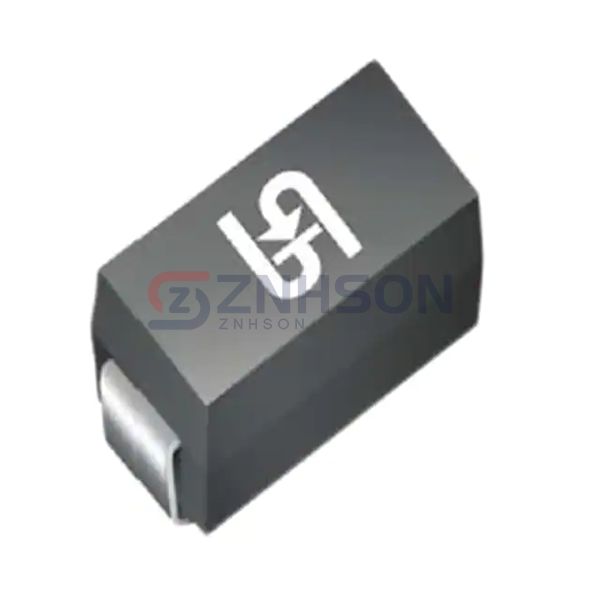

1PGSMA4747H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 20V 1.25W DO214AC
$0.12
Available to order
Reference Price (USD)
1+
$0.12344
500+
$0.1222056
1000+
$0.1209712
1500+
$0.1197368
2000+
$0.1185024
2500+
$0.117268
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1PGSMA4747H Zener diode from Taiwan Semiconductor Corporation is a top choice in the Discrete Semiconductor Products category. This single Zener diode is engineered for superior voltage regulation, with features like high power dissipation and low leakage current. It is ideal for applications in telecommunications, where it stabilizes voltage levels in base stations and network equipment. The 1PGSMA4747H is also used in automotive systems, protecting electronic control units from voltage spikes. Additionally, it finds applications in industrial power supplies, ensuring consistent performance in harsh environments. Its reliability and efficiency make it a preferred component in both commercial and industrial electronics.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 20 V
- Tolerance: ±5%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 22 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 15.2 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
