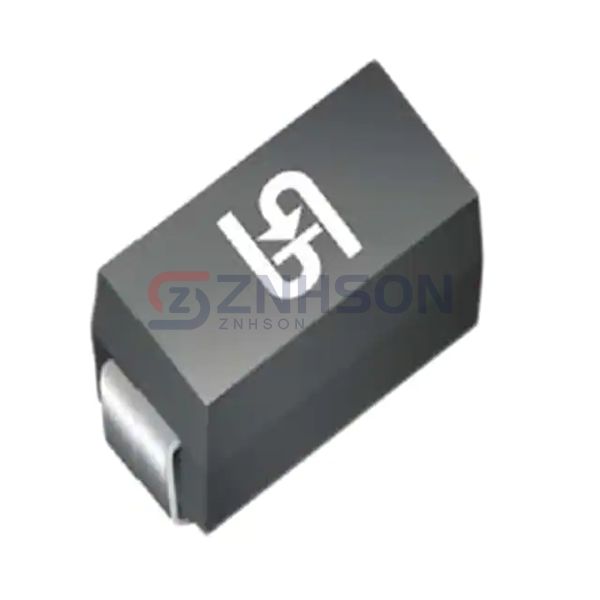

1PGSMA4750 R3G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 27V 1.25W DO214AC
$0.41
Available to order
Reference Price (USD)
1,800+
$0.13095
3,600+
$0.11931
5,400+
$0.11349
12,600+
$0.10476
45,000+
$0.09894
90,000+
$0.09021
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1PGSMA4750 R3G from Taiwan Semiconductor Corporation is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 1PGSMA4750 R3G is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Discontinued at Digi-Key
- Voltage - Zener (Nom) (Vz): 27 V
- Tolerance: ±5%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 35 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 20.6 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
