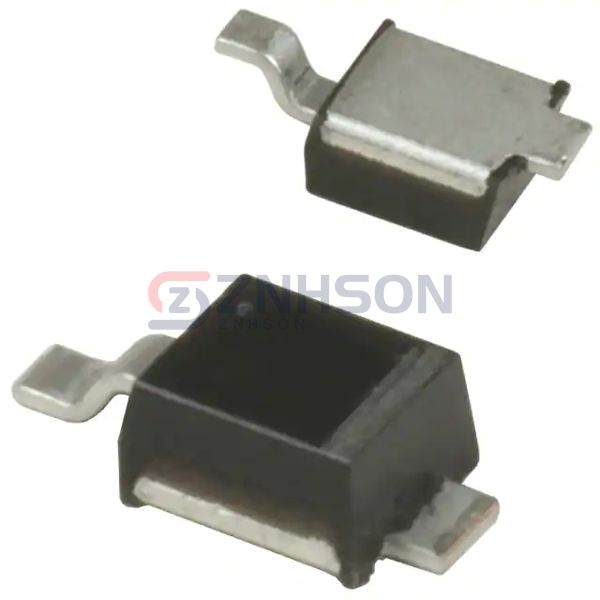

1PMT5941AE3/TR7
Microchip Technology
Microchip Technology
DIODE ZENER 47V 3W DO216AA
$0.70
Available to order
Reference Price (USD)
3,000+
$0.54600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1PMT5941AE3/TR7 by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1PMT5941AE3/TR7 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 47 V
- Tolerance: ±10%
- Power - Max: 3 W
- Impedance (Max) (Zzt): 67 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 35.8 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: DO-216AA
- Supplier Device Package: DO-216AA
