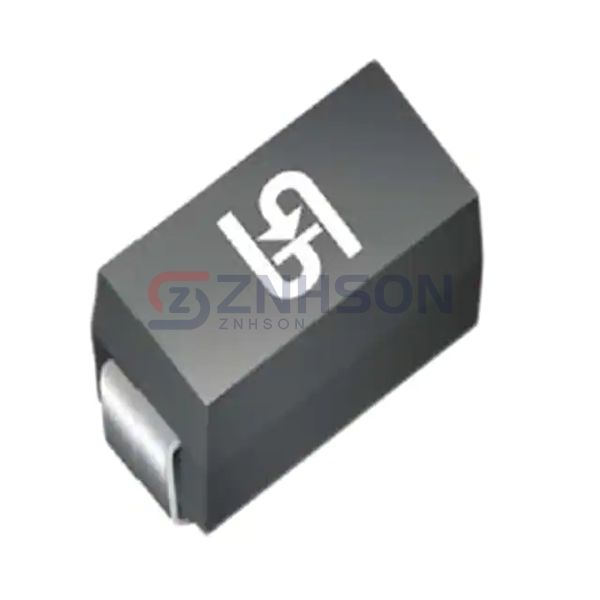

1SMA4741H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 11V 1.25W DO214AC
$0.11
Available to order
Reference Price (USD)
1+
$0.10622
500+
$0.1051578
1000+
$0.1040956
1500+
$0.1030334
2000+
$0.1019712
2500+
$0.100909
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1SMA4741H from Taiwan Semiconductor Corporation is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 1SMA4741H is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 11 V
- Tolerance: ±5%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 8 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 8.4 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
