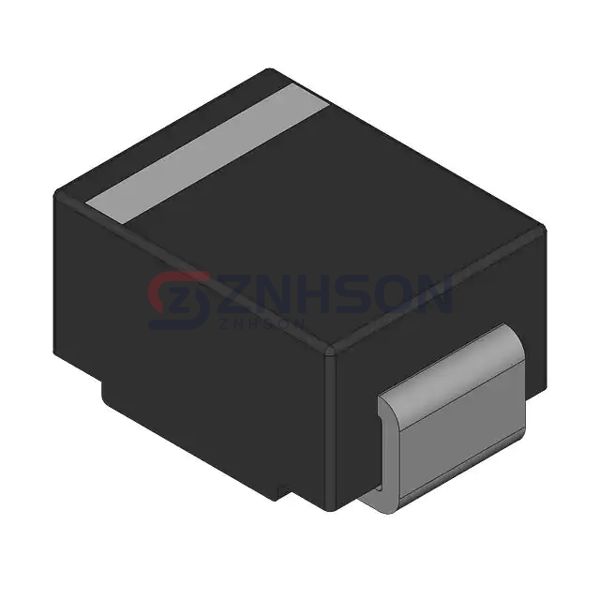

1SMB13CAT3G
onsemi
onsemi
TVS DIODE 13VWM 21.5VC 425TEPBGA
$0.22
Available to order
Reference Price (USD)
1+
$0.22000
500+
$0.2178
1000+
$0.2156
1500+
$0.2134
2000+
$0.2112
2500+
$0.209
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the 1SMB13CAT3G TVS diode by onsemi. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the 1SMB13CAT3G are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the 1SMB13CAT3G can shield HDMI ports in consumer electronics from voltage surges. Trust onsemi's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 13V
- Voltage - Breakdown (Min): 14.4V
- Voltage - Clamping (Max) @ Ipp: 21.5V
- Current - Peak Pulse (10/1000µs): 27.9A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 630pF @ 1MHz
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 425-FBGA
- Supplier Device Package: 425-TEPBGA I (19x19)
