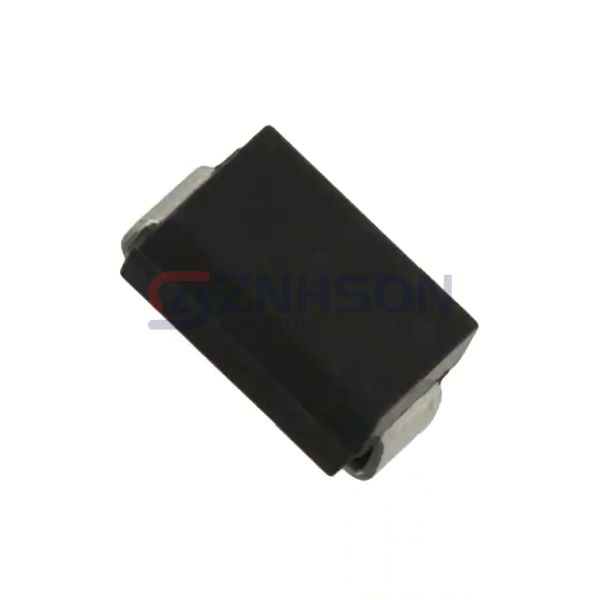

1SMB5948
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 91V 3W DO214AA
$0.16
Available to order
Reference Price (USD)
1+
$0.15515
500+
$0.1535985
1000+
$0.152047
1500+
$0.1504955
2000+
$0.148944
2500+
$0.1473925
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1SMB5948 from Taiwan Semiconductor Corporation is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 1SMB5948 is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 91 V
- Tolerance: ±5%
- Power - Max: 3 W
- Impedance (Max) (Zzt): 200 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 69.2 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
