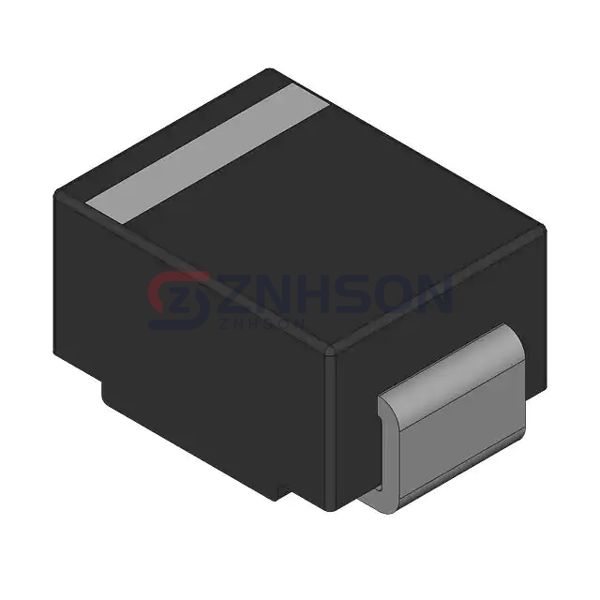

1SMB75AT3G
onsemi
onsemi
TVS DIODE 75VWM 121VC SMB
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the 1SMB75AT3G TVS diode by onsemi. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the 1SMB75AT3G are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the 1SMB75AT3G can shield HDMI ports in consumer electronics from voltage surges. Trust onsemi's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 75V
- Voltage - Breakdown (Min): 83.3V
- Voltage - Clamping (Max) @ Ipp: 121V
- Current - Peak Pulse (10/1000µs): 4.9A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 245pF @ 1MHz
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMB
Related Products
Eaton - Electronics Division
15BJ9-0CA
Vishay General Semiconductor - Diodes Division
SMA6J15A-M3/5A
Comchip Technology
A5KP300A-G
Microchip Technology
SMCJ400CAE3/TR13
Panjit International Inc.
PJGBLC03C_R1_00001
Vishay General Semiconductor - Diodes Division
SMB8J15CA-E3/52
Littelfuse Inc.
TPSMC78CA-VR
Vishay General Semiconductor - Diodes Division
P4KE24AHE3/54
YAGEO

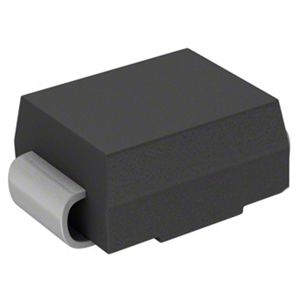

SMBJ100A-AT/TR13
