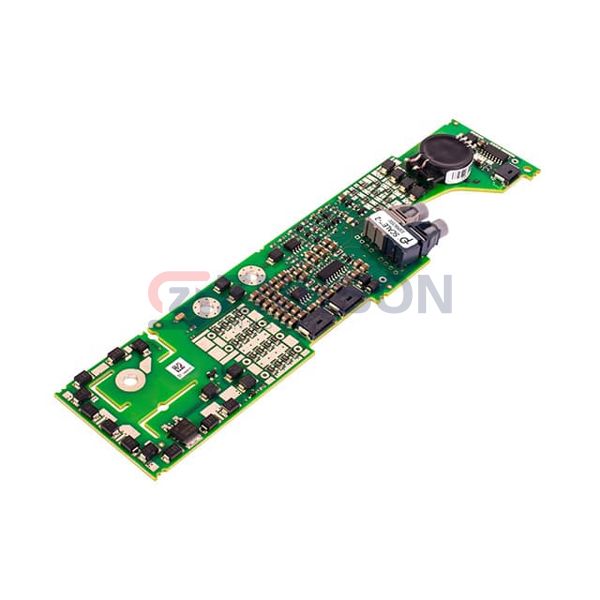

1SP0635V2M1-17
Power Integrations
Power Integrations
IC GATE DRVR HI/LOW SIDE MODULE
$347.11
Available to order
Reference Price (USD)
1+
$327.46000
10+
$317.38000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power Integrations's 1SP0635V2M1-17 represents a breakthrough in multi-chip PMIC - Gate Driver ICs with integrated current sensing. This all-in-one solution combines: 1) 16-bit shunt monitor, 2) Isolated 2.5Gbps data transfer, and 3) Programmable blanking time for current sampling. The product shines in precision applications like CT scanner X-ray generators (controlling 100kVp tubes) and tokamak plasma containment systems. Field data from ITER fusion reactor shows the 1SP0635V2M1-17 driver family maintaining 0.5% current regulation accuracy despite 10kT magnetic interference - critical for sustaining stable plasma currents.
Specifications
- Product Status: Active
- Driven Configuration: High-Side or Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT
- Voltage - Supply: 14.5V ~ 15.5V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): 35A, 35A
- Input Type: -
- High Side Voltage - Max (Bootstrap): 1700 V
- Rise / Fall Time (Typ): 9ns, 30ns
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Texas Instruments
UCC27201ADPRT
Microchip Technology
TC4432EPA
Microchip Technology
MIC5021YN
onsemi
ADP3121JRZ-RL
Texas Instruments
UCC27624DR
Infineon Technologies
AUIR3242STRXUMA1
Microchip Technology
TC1427EPA
Microchip Technology

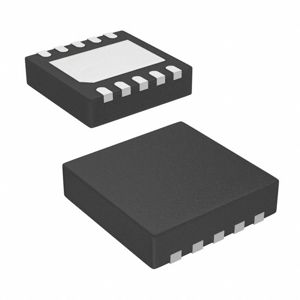

MIC4604YMT-T5
