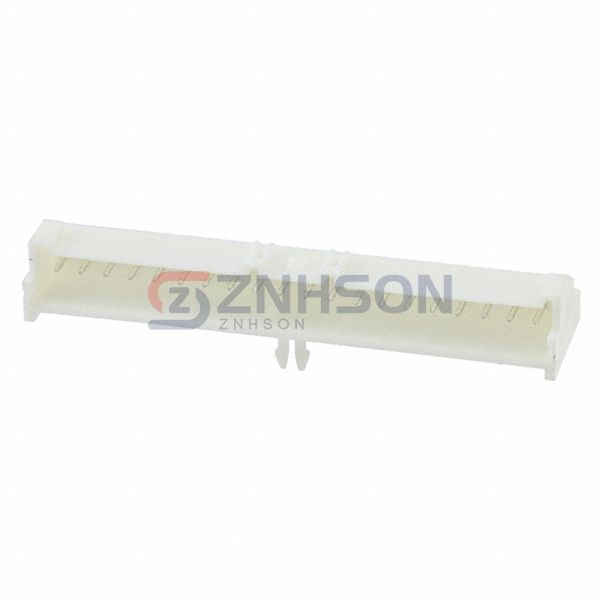

2-1744426-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 20POS 2.5MM
$2.01
Available to order
Reference Price (USD)
1+
$1.73000
10+
$1.57600
100+
$1.36820
500+
$1.16002
1,000+
$1.01130
5,000+
$0.91017
10,000+
$0.89232
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2-1744426-0 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Kinked Pin, Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.299" (7.60mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 4.2A
- Voltage Rating: 250VAC
