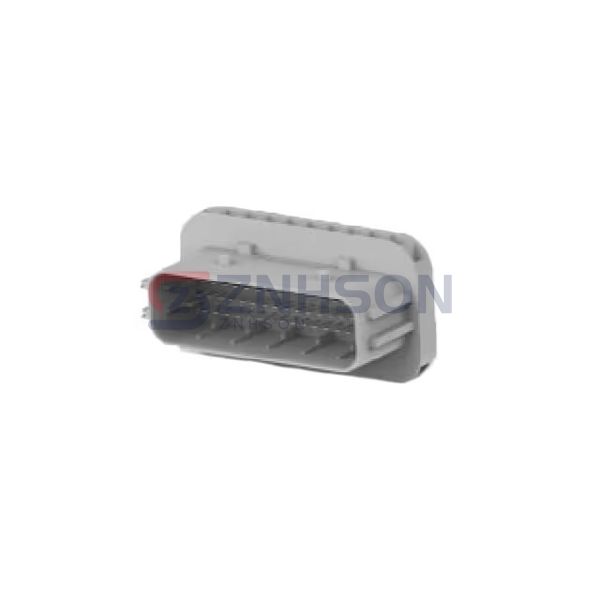

2-2331102-1
TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors
TAB HEADER 46POS.
$27.45
Available to order
Reference Price (USD)
1+
$27.45000
500+
$27.1755
1000+
$26.901
1500+
$26.6265
2000+
$26.352
2500+
$26.0775
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 2-2331102-1 rectangular connector header from TE Connectivity Deutsch Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 2-2331102-1 meets the highest industry standards. TE Connectivity Deutsch Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.157" (4.00mm)
- Number of Positions: 46
- Number of Rows: 3
- Row Spacing - Mating: 0.177" (4.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.421" (10.69mm)
- Overall Contact Length: -
- Insulation Height: 1.394" (35.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Silver
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide, Mounting Flange, Sealed
- Operating Temperature: -40°C ~ 120°C
- Ingress Protection: IP68/IP6K9K
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): 23A
- Voltage Rating: 60VDC
Related Products
Preci-Dip
351-80-143-00-003101
Samtec Inc.
BBD-101-G-B
Samtec Inc.
TSM-103-01-T-SH-LC-P-TR
Amphenol ICC (FCI)
77311-822-20LF
TE Connectivity AMP Connectors
1-103169-1
Samtec Inc.
EHF-105-01-LM-D-SM-LC-P
Samtec Inc.
TSM-108-01-S-DV-003
TE Connectivity AMP Connectors
9-103330-0-30
Samtec Inc.

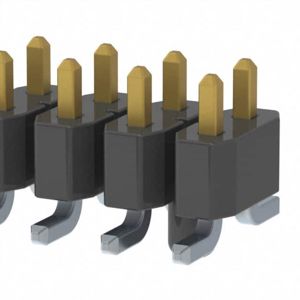

TSM-114-05-L-DV-A
