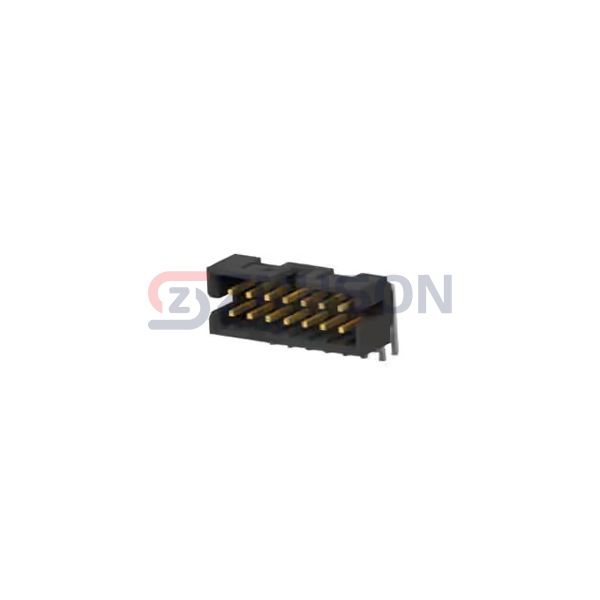

2-2842250-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
20P, AMPMODU 2MM, DOUBLE ROW SHR
$4.23
Available to order
Reference Price (USD)
1+
$4.23000
500+
$4.1877
1000+
$4.1454
1500+
$4.1031
2000+
$4.0608
2500+
$4.0185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2-2842250-0 from TE Connectivity AMP Connectors is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 2-2842250-0 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose TE Connectivity AMP Connectors for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: 0.098" (2.50mm)
- Overall Contact Length: -
- Insulation Height: 0.248" (6.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125VAC/DC
Related Products
TE Connectivity AMP Connectors
2-1969572-6
Preci-Dip
450-80-240-00-001101
Harwin Inc.
M22-5320205
Samtec Inc.
FTE-110-03-G-DV-P
Samtec Inc.
TFC-110-32-L-D-A-K

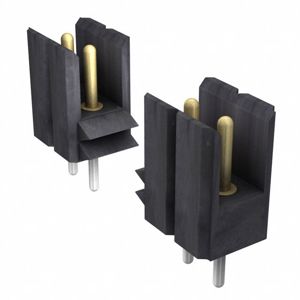

Preci-Dip
800-V3-009-12-002101

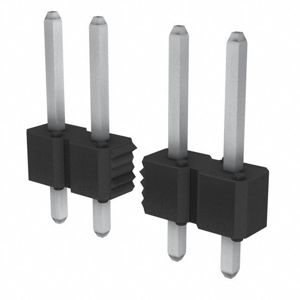

Amphenol ICC (FCI)
77311-401-07LF
Samtec Inc.

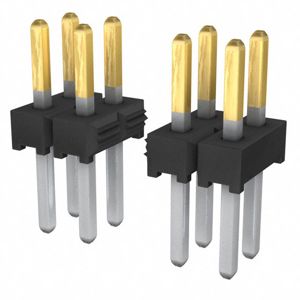

TMM-114-03-F-D
Samtec Inc.

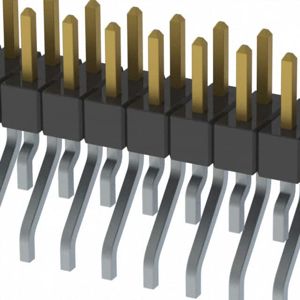

MMT-124-01-F-DH-TR
