2-292132-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

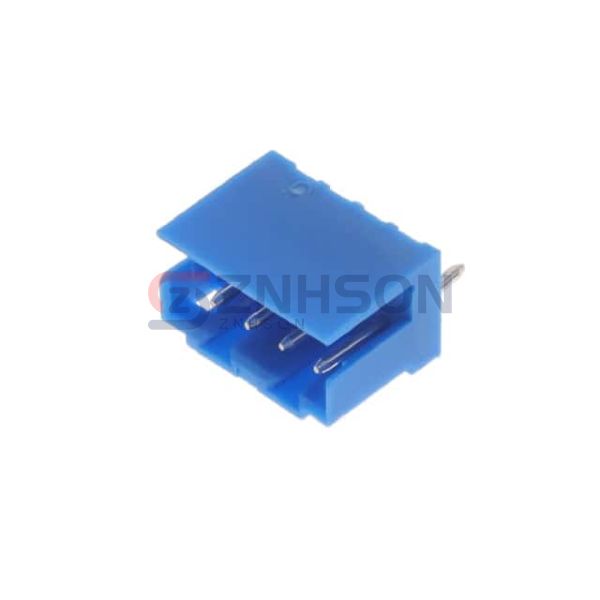

CONN HEADER VERT 4POS 2MM
$0.83
Available to order
Reference Price (USD)
1+
$0.71000
10+
$0.66700
100+
$0.52120
500+
$0.45868
1,000+
$0.38571
5,000+
$0.34401
10,000+
$0.32316
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 2-292132-4 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.165" (4.20mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.358" (9.09mm)
- Insulation Height: 0.268" (6.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Blue
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC
