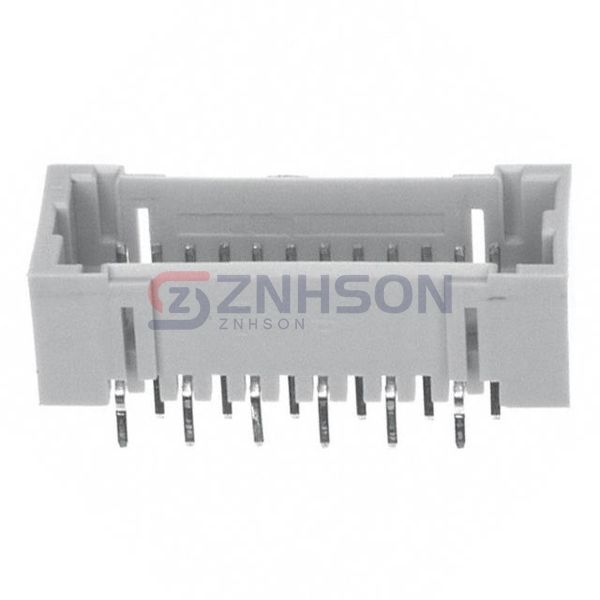

2-292208-4

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.059" (1.50mm)
• Number of Positions: 24
• Number of Rows: 2
• Row Spacing - Mating: 0.079" (2.00mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Kinked Pin, Solder
• Fastening Type: Detent Lock
• Contact Length - Mating: 0.114" (2.90mm)
• Contact Length - Post: 0.118" (3.00mm)
• Overall Contact Length: -
• Insulation Height: 0.291" (7.40mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon, Glass Filled
• Features: Board Guide
• Operating Temperature: -30°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Gray
• Current Rating (Amps): Varies by Wire Gauge
• Voltage Rating: 50VAC
