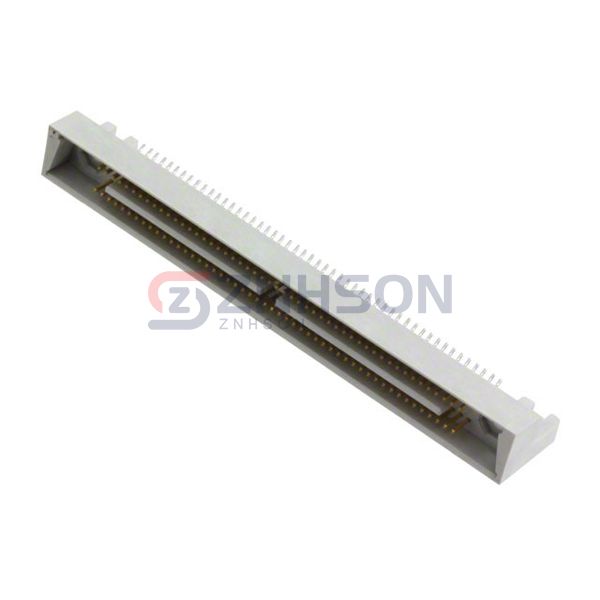

2-531803-0
TE Connectivity Aerospace, Defense and Marine
TE Connectivity Aerospace, Defense and Marine
CONN HEADER BRD EDGE 100P 1.27MM
$192.13
Available to order
Reference Price (USD)
144+
$110.46313
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2-531803-0 by TE Connectivity Aerospace, Defense and Marine is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 2-531803-0 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity Aerospace, Defense and Marine ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 100
- Number of Rows: 2
- Row Spacing - Mating: 0.150" (3.81mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.140" (3.56mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: -
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin-Lead
- Contact Material: -
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Card Extender, Mating Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
