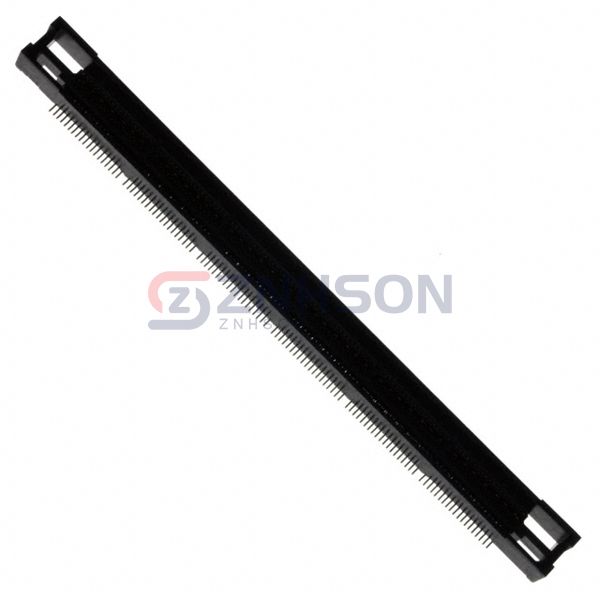

2-5767004-7

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN RCPT 228POS SMD GOLD

Datasheet:

2-5767004-7 Datasheet

$114.61

Available to order

Reference Price (USD)

$86.73000

12+

$81.62833

30+

$79.07767

54+

$73.97593

102+

$69.89461

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Optimize your PCB layouts with the 2-5767004-7 rectangular connector by TE Connectivity AMP Connectors. This edge-type mezzanine connector is designed for high-density board-to-board applications, offering superior signal integrity and space efficiency. Its robust construction ensures reliable performance in harsh conditions, from industrial machinery to outdoor telecommunications equipment. Typical applications include modular electronics, such as blade servers and portable medical devices. By integrating 2-5767004-7 into your designs, you benefit from a connector that combines innovation, durability, and ease of use.

Specifications

Product Status: Active
Connector Type: Receptacle, Center Strip Contacts
Number of Positions: 228
Pitch: 0.025" (0.64mm)
Number of Rows: 2
Mounting Type: Surface Mount
Features: Board Guide, Ground Bus (Plane)
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Mated Stacking Heights: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
Height Above Board: 0.236" (6.00mm)
