2-647139-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

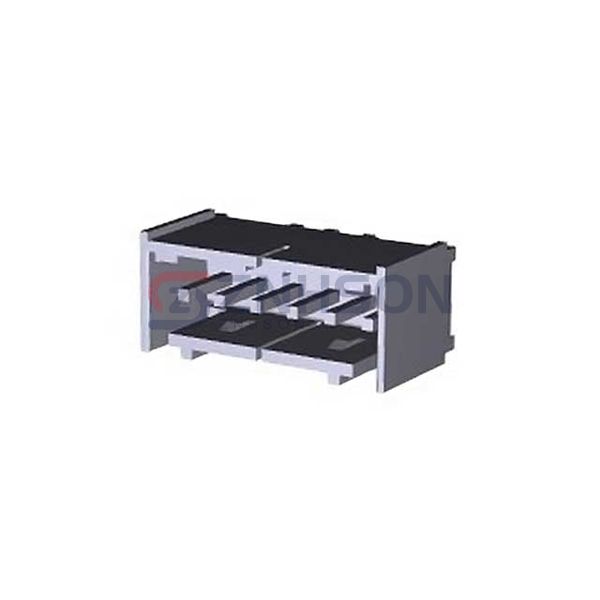

CONN HEADER VERT 6POS 3.96MM
$1.57
Available to order
Reference Price (USD)
1+
$1.57000
500+
$1.5543
1000+
$1.5386
1500+
$1.5229
2000+
$1.5072
2500+
$1.4915
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2-647139-6 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.300" (7.62mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.550" (13.97mm)
- Insulation Height: 0.525" (13.34mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 600VAC
