20021521-00030D4LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER SMD 30POS 1.27MM
$3.71
Available to order
Reference Price (USD)
1,232+
$1.80890
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

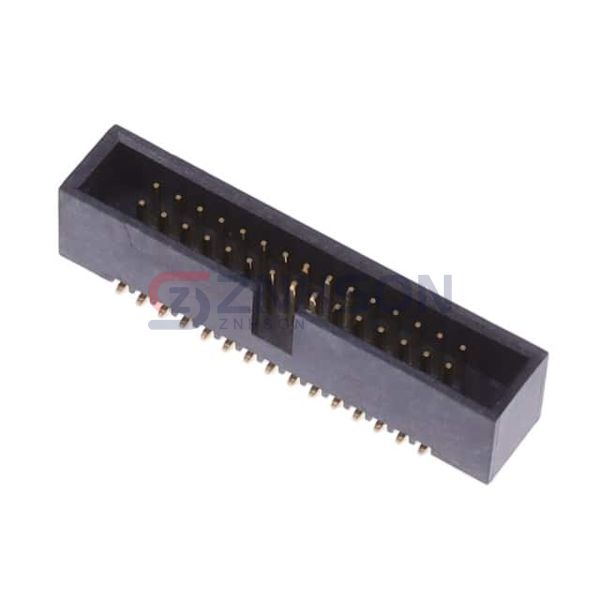

Optimize your interconnections with the 20021521-00030D4LF rectangular connector header from Amphenol ICC (FCI). These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 20021521-00030D4LF is perfect for automotive, industrial, and consumer electronics. Amphenol ICC (FCI) ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Plastic
- Features: Keying Slot, Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 125VAC
