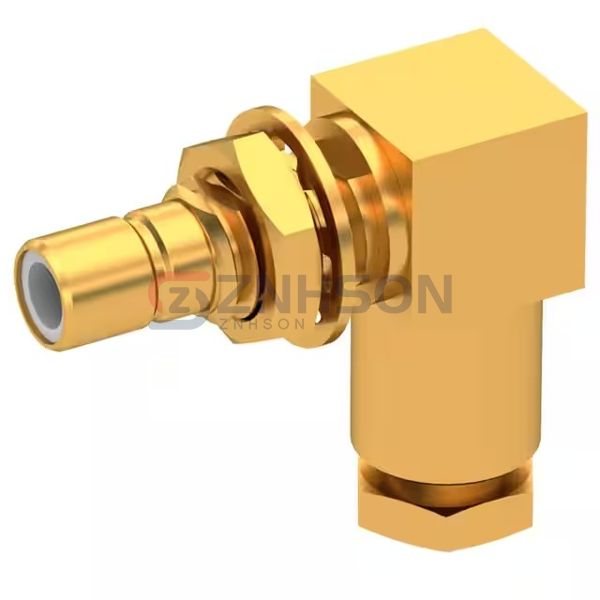

2006-1541-010
Radiall USA, Inc.
Radiall USA, Inc.
SMB / RIGHT ANGLE JACK MALE SOLD
$24.83
Available to order
Reference Price (USD)
1+
$24.83120
500+
$24.582888
1000+
$24.334576
1500+
$24.086264
2000+
$23.837952
2500+
$23.58964
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2006-1541-010 from Radiall USA, Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 2006-1541-010 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Clamp
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: RG-405 (.085" Semi Rigid)
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
