2009891212
Molex
Molex

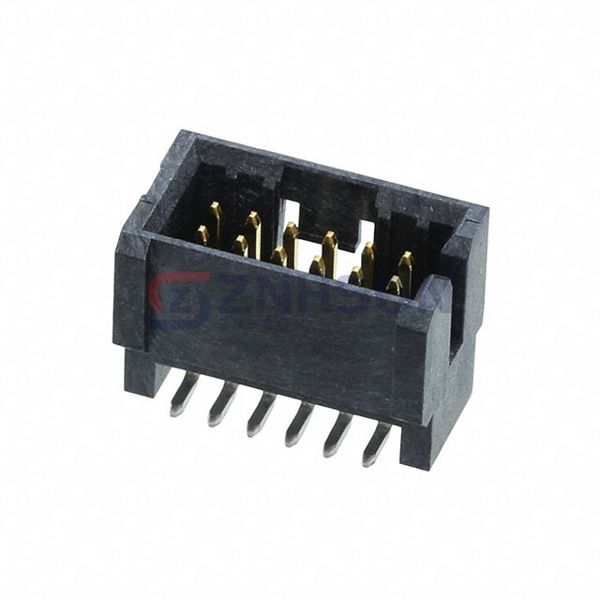

CONN HEADER SMD 12POS 1.27MM
$2.56
Available to order
Reference Price (USD)
1+
$2.55930
500+
$2.533707
1000+
$2.508114
1500+
$2.482521
2000+
$2.456928
2500+
$2.431335
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2009891212 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.280" (7.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Pick and Place
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 125V
Related Products
Mill-Max Manufacturing Corp.
335-40-108-00-160000
Preci-Dip
350-10-160-00-006101
Samtec Inc.
TSM-105-04-L-DH-TR
Preci-Dip
854-10-141-20-001101
Harwin Inc.
M20-8750242
Samtec Inc.
ZSS-132-09-L-D-1275
Samtec Inc.
FTM-128-02-L-DV-S
Samtec Inc.
TMM-130-01-T-D
Samtec Inc.

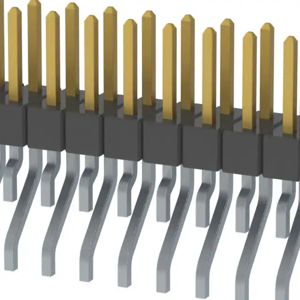

MMT-112-02-S-DH-P-TR
