2011-1X20G00SG031B
Oupiin
Oupiin
PIN HEADER, SINGLE ROW, 20 PIN,
$0.03
Available to order
Reference Price (USD)
1+
$0.03000
500+
$0.0297
1000+
$0.0294
1500+
$0.0291
2000+
$0.0288
2500+
$0.0285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 2011-1X20G00SG031B rectangular connector header by Oupiin. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 2011-1X20G00SG031B ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Oupiin for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.457" (11.60mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
BKT-107-01-L-V-TR
Molex
0022112212
Samtec Inc.
TMM-103-04-L-D-SM-TR
Samtec Inc.
TMM-150-01-T-D-RA
Samtec Inc.
FTSH-106-01-L-DH-A
Oupiin
2011-2X05G00RAB
TE Connectivity AMP Connectors
292174-8
Preci-Dip
350-10-127-00-012101

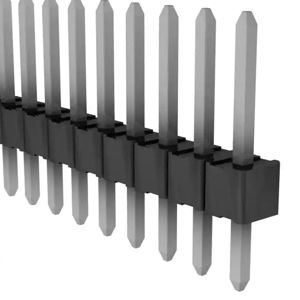

Molex
