2011-2X25G00SJ030B
Oupiin
Oupiin
PIN HEADER, DOUBLE ROW 50 PIN, S
$1.62
Available to order
Reference Price (USD)
1+
$1.62000
500+
$1.6038
1000+
$1.5876
1500+
$1.5714
2000+
$1.5552
2500+
$1.539
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

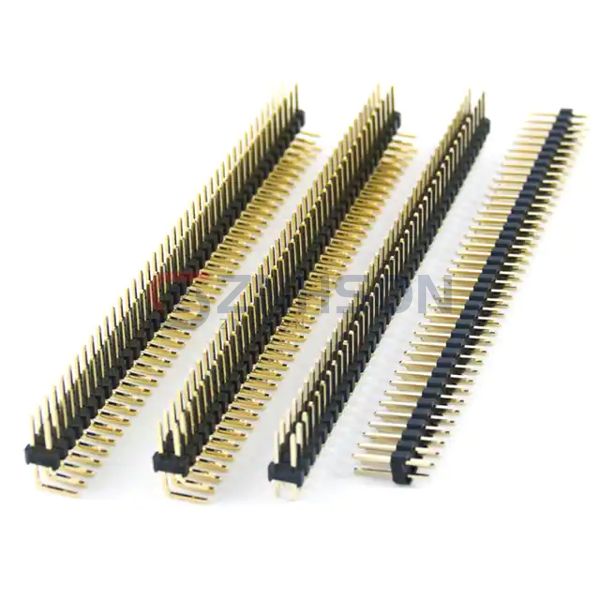

The 2011-2X25G00SJ030B by Oupiin is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 2011-2X25G00SJ030B supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Oupiin ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.457" (11.60mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
451-10-222-00-004101
Amphenol ICC (FCI)
10129379-910002BLF
Samtec Inc.
TSM-105-01-T-DV-008-P
Samtec Inc.
FTS-113-01-S-D
Samtec Inc.
MMT-130-02-L-SH
Samtec Inc.

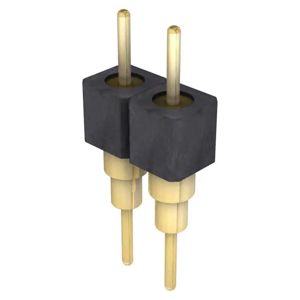

BBS-102-G-A
Preci-Dip

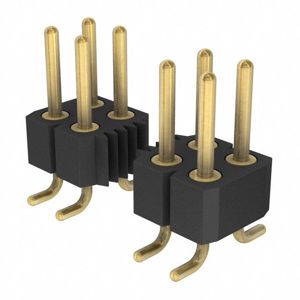

802-10-046-30-001101
Samtec Inc.
TMS-105-02-G-S
Samtec Inc.

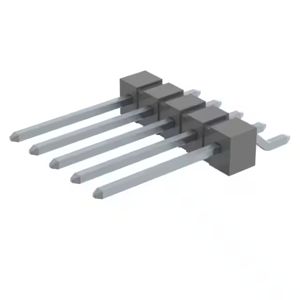

TSM-105-03-T-SH-K-TR
