2211-2X10G00S-2.6-2.8B
Oupiin
Oupiin
PIN HEADER, DOUBLE ROW, 20 PIN,
$1.08
Available to order
Reference Price (USD)
1+
$1.08000
500+
$1.0692
1000+
$1.0584
1500+
$1.0476
2000+
$1.0368
2500+
$1.026
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

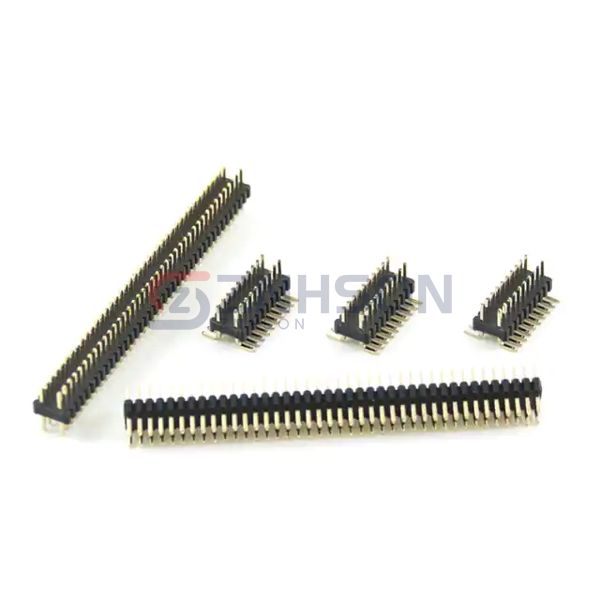

Optimize your interconnections with the 2211-2X10G00S-2.6-2.8B rectangular connector header from Oupiin. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 2211-2X10G00S-2.6-2.8B is perfect for automotive, industrial, and consumer electronics. Oupiin ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.110" (2.80mm)
- Contact Length - Post: 0.102" (2.60mm)
- Overall Contact Length: 0.280" (7.10mm)
- Insulation Height: 0.067" (1.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
