25-7630
Cinch Connectivity Solutions AIM-Cambridge
Cinch Connectivity Solutions AIM-Cambridge

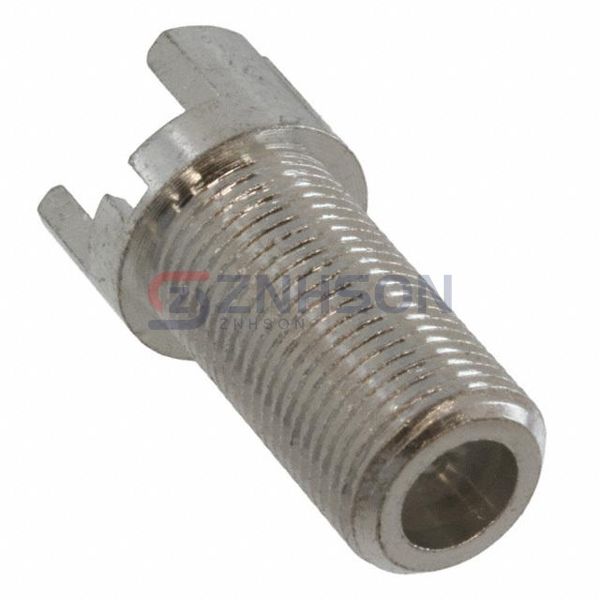

CONN F JACK STR 75 OHM EDGE MNT
$1.39
Available to order
Reference Price (USD)
1+
$1.16000
10+
$1.02000
25+
$0.96000
50+
$0.92000
100+
$0.88000
250+
$0.80000
500+
$0.72000
1,000+
$0.64000
2,500+
$0.58000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 25-7630 from Cinch Connectivity Solutions AIM-Cambridge sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 25-7630 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: F Type
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 1 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Phosphor Bronze
