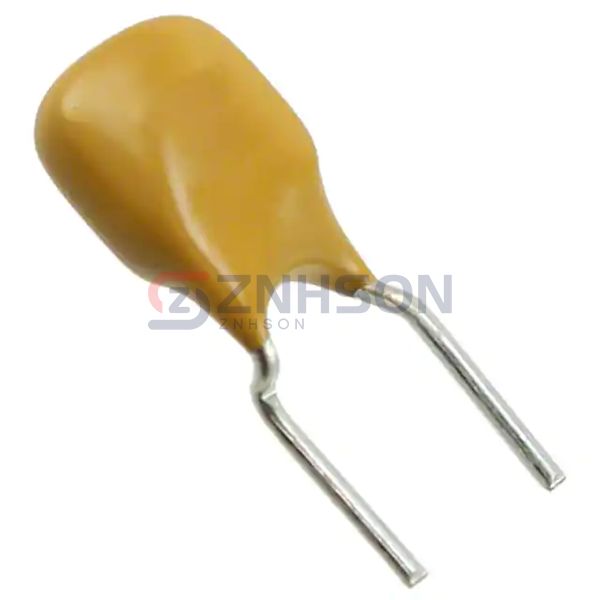

250R120-RCZR
Littelfuse Inc.
Littelfuse Inc.
PTC RESET FUSE 60V 120MA RADIAL
$0.88
Available to order
Reference Price (USD)
1,200+
$0.40764
2,400+
$0.38829
3,600+
$0.38184
6,000+
$0.36894
12,000+
$0.35604
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 250R120-RCZR PTC resettable fuse by Littelfuse Inc., a top-tier solution for circuit protection. These fuses automatically reset after a fault, providing continuous protection without manual intervention. The 250R120-RCZR is engineered to handle high surge currents and offers stable performance across a wide temperature range. Its robust construction ensures reliability in applications such as power supplies, battery packs, and telecommunications equipment. By choosing the 250R120-RCZR, you're investing in a fuse that combines innovation, safety, and efficiency for all your circuit protection needs.
Specifications
- Product Status: Active
- Type: Polymeric
- Voltage - Max: 60V (250V Int)
- Current - Max: 3 A
- Current - Hold (Ih) (Max): 120 mA
- Current - Trip (It): 240 mA
- Time to Trip: 3 s
- Resistance - Initial (Ri) (Min): 5.4 Ohms
- Resistance - Post Trip (R1) (Max): 14 Ohms
- Resistance - 25°C (Typ): -
- Operating Temperature: -40°C ~ 85°C
- Ratings: -
- Mounting Type: Through Hole
- Package / Case: Radial, Disc
- Size / Dimension: 0.256" L x 0.181" W (6.50mm x 4.60mm)
- Height - Seated (Max): 0.433" (11.00mm)
- Thickness (Max): -
- Lead Spacing: 0.201" (5.10mm)
