2538-B10G00DBT
Oupiin
Oupiin

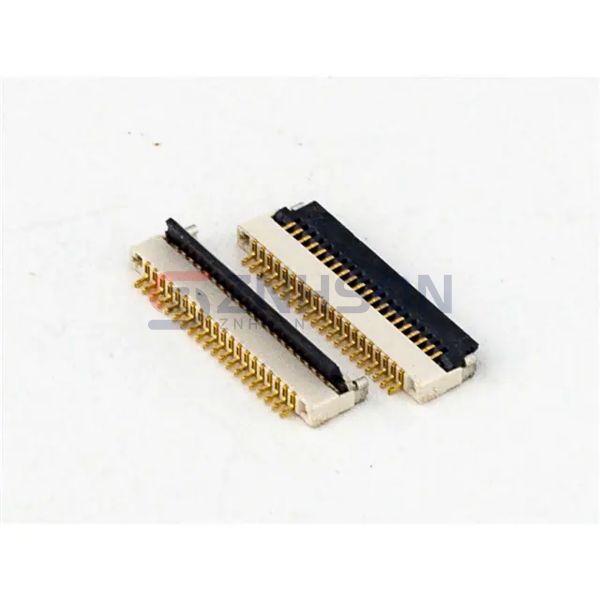

FFC/FPC CONNECTOR, 10 PINS, SMD,
$0.55
Available to order
Reference Price (USD)
1+
$0.55000
500+
$0.5445
1000+
$0.539
1500+
$0.5335
2000+
$0.528
2500+
$0.5225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the 2538-B10G00DBT FFC/FPC Connectors from Oupiin, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The 2538-B10G00DBT series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Oupiin's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for 2538-B10G00DBT when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top and Bottom
- Number of Positions: 10
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.039" (1.00mm)
- Locking Feature: Flip Lock, Backlock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Voltage Rating: -
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
