27643202RP2
NorComp Inc.
NorComp Inc.

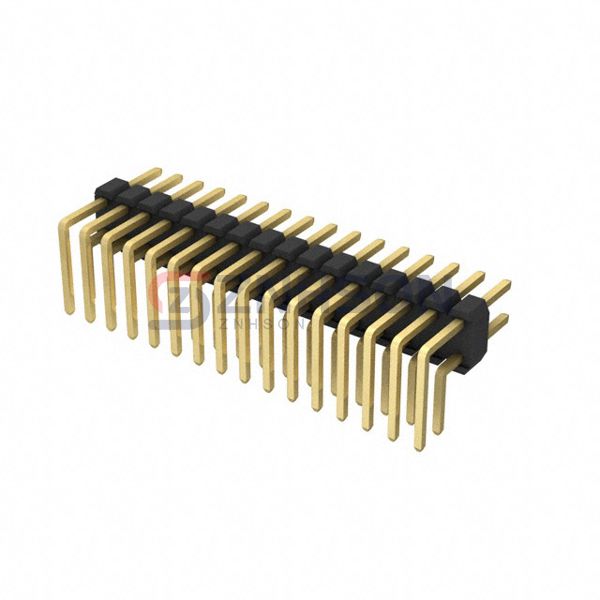

CONN HEADER R/A 32POS 2MM
$5.05
Available to order
Reference Price (USD)
1+
$4.59000
10+
$4.40300
25+
$4.03640
50+
$3.85280
100+
$3.66930
250+
$3.21068
500+
$3.11894
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 27643202RP2 male pin header by NorComp Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. NorComp Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.158" (4.01mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
Related Products
Samtec Inc.
TFC-110-32-FM-D-K
Samtec Inc.
TSM-136-02-S-SH-P
Samtec Inc.
TSM-105-01-S-DH-A-TR
Samtec Inc.
MTSW-102-07-L-S-240
Hirose Electric Co Ltd
DF3E-5P-2V(54)
Preci-Dip
351-80-126-00-005101
Sullins Connector Solutions
PEC31SGBN
3M
929834-05-36
Mill-Max Manufacturing Corp.

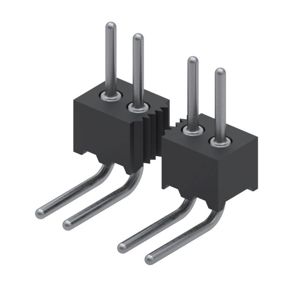

850-90-011-20-001000
