27647002RP2
NorComp Inc.
NorComp Inc.

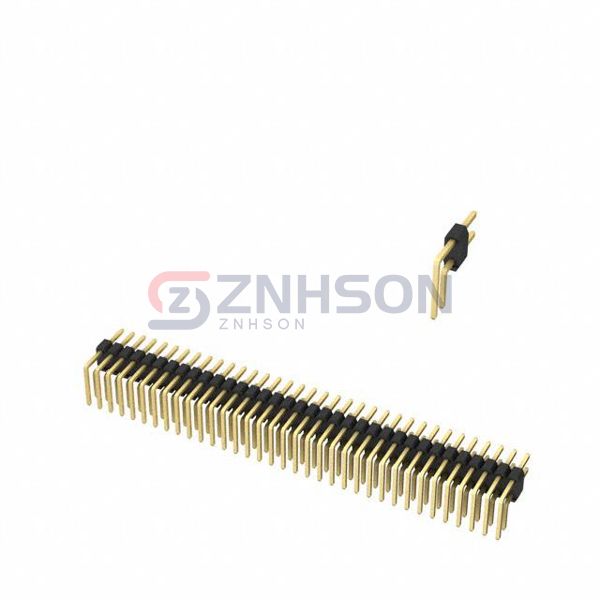

CONN HEADER R/A 70POS 2MM
$10.17
Available to order
Reference Price (USD)
1+
$9.23000
10+
$8.82900
25+
$8.02680
50+
$7.62540
100+
$7.42470
250+
$6.62200
500+
$6.22066
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 27647002RP2 rectangular connector header by NorComp Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 27647002RP2 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust NorComp Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 70
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.158" (4.01mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
