282116-75
Amphenol RF
Amphenol RF

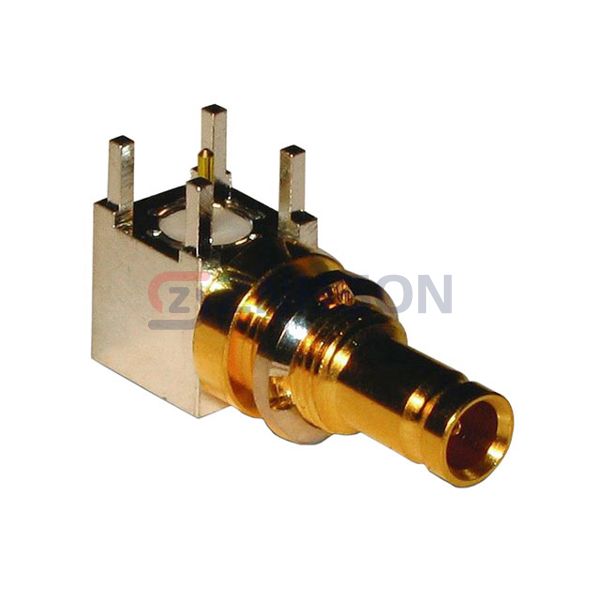

CONN 1.0/2.3 PLUG R/A 75 OHM PCB
$22.14
Available to order
Reference Price (USD)
1+
$20.42000
10+
$18.43700
25+
$17.66400
50+
$16.56000
100+
$16.00800
250+
$15.12480
500+
$14.68320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 282116-75 from Amphenol RF represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 282116-75 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: 1.0/2.3
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Push-Pull
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper; Brass
