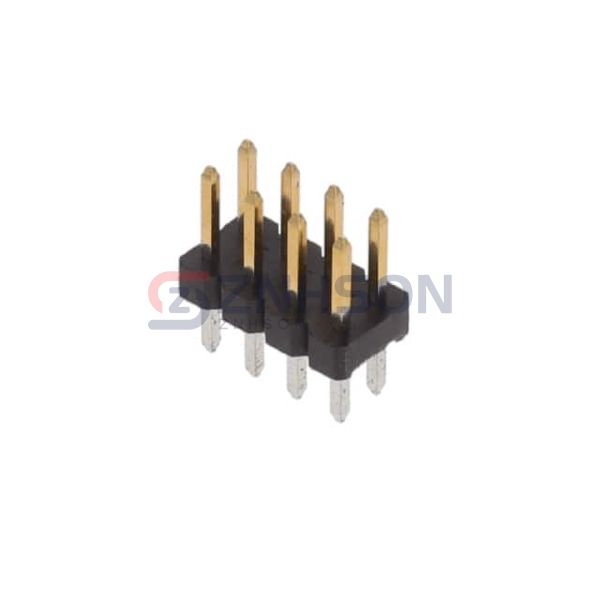

2842127-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
8P,2MM,BRK HDR,DRVT,2.8,0.38AU,T
$1.34
Available to order
Reference Price (USD)
1+
$1.34000
500+
$1.3266
1000+
$1.3132
1500+
$1.2998
2000+
$1.2864
2500+
$1.273
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2842127-4 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.327" (8.30mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125VAC/DC
