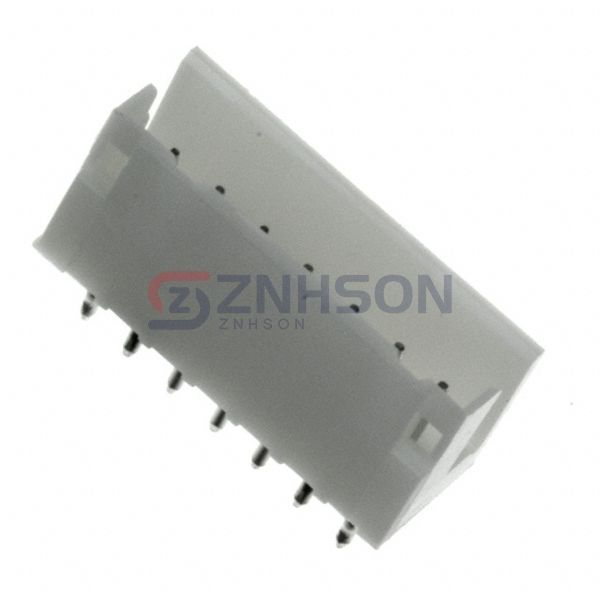

292132-7
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 7POS 2MM
$0.81
Available to order
Reference Price (USD)
1+
$0.72000
10+
$0.67600
100+
$0.52790
500+
$0.46462
1,000+
$0.39070
5,000+
$0.34846
10,000+
$0.32735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 292132-7 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 292132-7 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.165" (4.20mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.358" (9.09mm)
- Insulation Height: 0.268" (6.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC
Related Products
Amphenol ICC (FCI)
95278-401B50LF
Molex
0903257014
Molex
0878334420
Samtec Inc.
TSW-113-14-S-D
Samtec Inc.
TMM-113-01-T-D-SM-P-TR
Samtec Inc.
TMM-137-01-G-S-SM
Preci-Dip
350-10-155-00-206101
Sullins Connector Solutions
S9693E-01

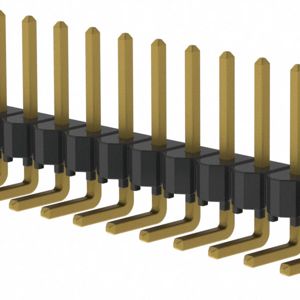

Samtec Inc.
