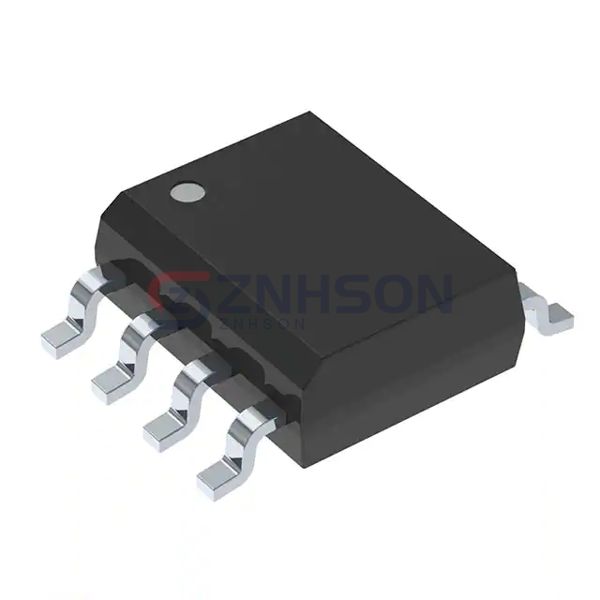

2ED2104S06FXUMA1
Infineon Technologies
Infineon Technologies
LEVEL SHIFT SOI
$1.41
Available to order
Reference Price (USD)
1+
$1.41000
500+
$1.3959
1000+
$1.3818
1500+
$1.3677
2000+
$1.3536
2500+
$1.3395
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's 2ED2104S06FXUMA1 establishes new standards for automotive PMIC - Gate Driver ICs with ASIL-D functional safety certification. This IC classification incorporates: 1) Redundant fault detection circuits, 2) On-chip LDO for auxiliary power, and 3) ISO 26262-compliant failure modes. Automotive applications range from 48V mild-hybrid BSG systems to steer-by-wire and brake-by-wire architectures. Benchmark tests show the 2ED2104S06FXUMA1 reducing ECU wake-up time by 200ms in Volkswagen's MEB platform, while preventing latch-up during load-dump transients up to 45V. The driver also enables <1 A standby current for always-on ADAS modules.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: IGBT, N-Channel MOSFET
- Voltage - Supply: 10V ~ 20V
- Logic Voltage - VIL, VIH: 1.1V, 1.7V
- Current - Peak Output (Source, Sink): 290mA, 700mA
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 650 V
- Rise / Fall Time (Typ): 70ns, 35ns
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: PG-DSO-8-69
