2M56ZH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation

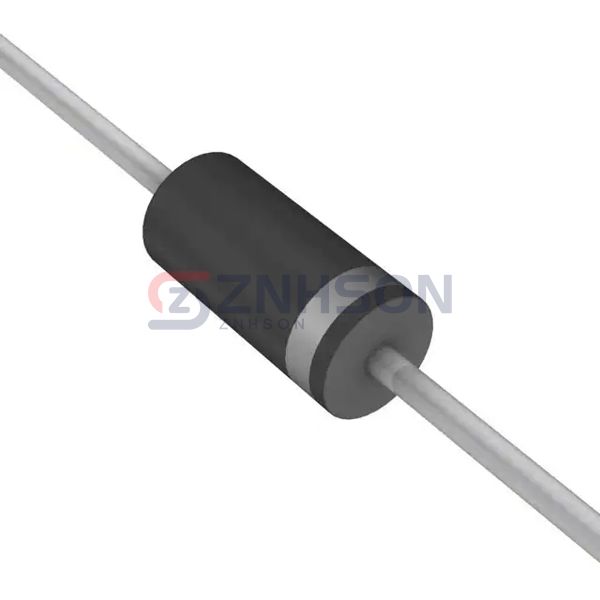

DIODE ZENER 56V 2W DO204AC
$0.18
Available to order
Reference Price (USD)
1+
$0.17800
500+
$0.17622
1000+
$0.17444
1500+
$0.17266
2000+
$0.17088
2500+
$0.1691
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2M56ZH from Taiwan Semiconductor Corporation is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 2M56ZH is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 56 V
- Tolerance: ±5%
- Power - Max: 2 W
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 42.6 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: DO-204AC, DO-15, Axial
- Supplier Device Package: DO-204AC (DO-15)
