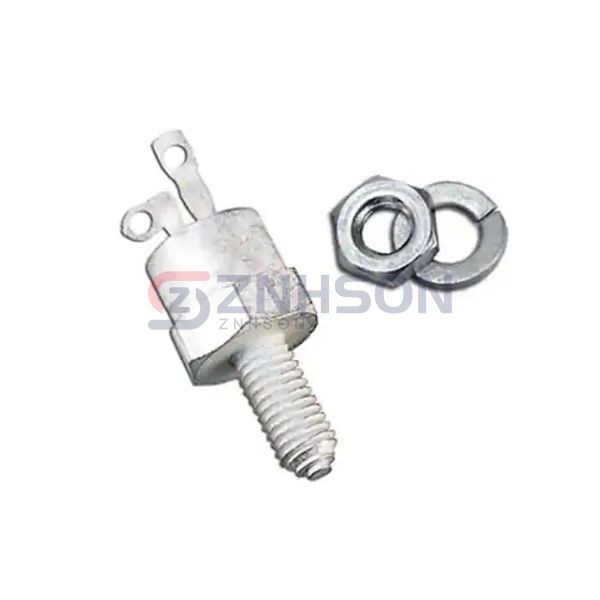

2N1776
Solid State Inc.
Solid State Inc.
TO64 8 AMP SCR
$6.95
Available to order
Reference Price (USD)
1+
$6.95000
500+
$6.8805
1000+
$6.811
1500+
$6.7415
2000+
$6.672
2500+
$6.6025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2N1776 Thyristor - SCR by Solid State Inc. is a standout in the Discrete Semiconductor Products lineup, offering superior voltage and current ratings. Engineered for efficiency, this SCR features low gate triggering current and high noise immunity. Its primary applications include AC power control, phase-angle controllers, and UPS systems. Examples range from household dimmers to heavy-duty industrial machinery. With Solid State Inc.'s commitment to quality, the 2N1776 guarantees optimal performance in demanding environments.
Specifications
- Product Status: Active
- Voltage - Off State: 300 V
- Voltage - Gate Trigger (Vgt) (Max): 10 V
- Current - Gate Trigger (Igt) (Max): 2 A
- Voltage - On State (Vtm) (Max): -
- Current - On State (It (AV)) (Max): 4.7 A
- Current - On State (It (RMS)) (Max): 7.4 A
- Current - Hold (Ih) (Max): 8 mA
- Current - Off State (Max): 4 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 60A
- SCR Type: Standard Recovery
- Operating Temperature: -65°C ~ 125°C
- Mounting Type: Stud Mount
- Package / Case: TO-208AB, TO-64-3, Stud
- Supplier Device Package: TO-64
