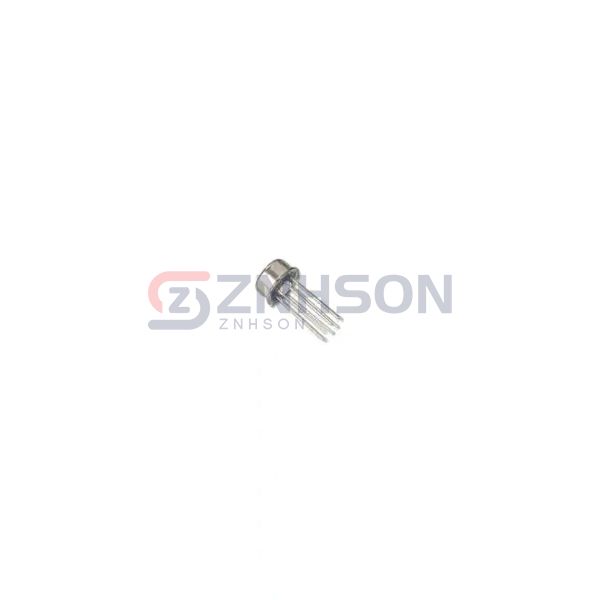

2N2325
Solid State Inc.
Solid State Inc.
TO5 1.6 AMP SCR
$4.40
Available to order
Reference Price (USD)
1+
$4.40000
500+
$4.356
1000+
$4.312
1500+
$4.268
2000+
$4.224
2500+
$4.18
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the high-performance 2N2325 Thyristor - SCR from Solid State Inc., designed for robust and reliable switching applications. As a key component in the Discrete Semiconductor Products category, this SCR offers exceptional thermal stability and surge current handling. Ideal for power control circuits, motor controllers, and industrial automation systems, the 2N2325 ensures precise triggering and long-term durability. Whether used in welding equipment, voltage regulators, or lighting control, this thyristor delivers unmatched performance. Trust Solid State Inc.'s expertise in semiconductor technology for your next project.
Specifications
- Product Status: Active
- Voltage - Off State: 150 V
- Voltage - Gate Trigger (Vgt) (Max): 800 mV
- Current - Gate Trigger (Igt) (Max): 200 µA
- Voltage - On State (Vtm) (Max): 2.2 V
- Current - On State (It (AV)) (Max): -
- Current - On State (It (RMS)) (Max): 1.6 A
- Current - Hold (Ih) (Max): 2 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 15A
- SCR Type: Standard Recovery
- Operating Temperature: -65°C ~ 125°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-205AA, TO-5-3 Metal Can
- Supplier Device Package: TO-5
