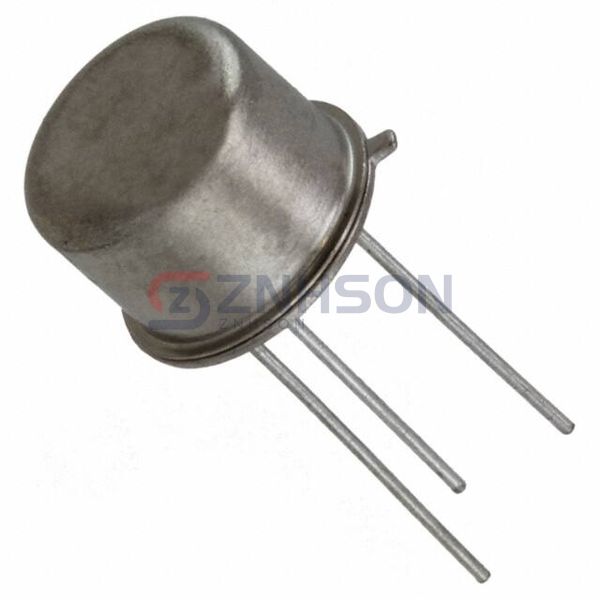

2N2329S
Microchip Technology
Microchip Technology
SCR
$45.38
Available to order
Reference Price (USD)
1+
$45.37500
500+
$44.92125
1000+
$44.4675
1500+
$44.01375
2000+
$43.56
2500+
$43.10625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the 2N2329S Thyristor - SCR from Microchip Technology, a game-changer in the Discrete Semiconductor Products sector. Boasting ultra-fast switching and high surge current tolerance, this SCR is built for modern electronics. It's particularly effective in pulse generators, crowbar circuits, and power factor correction devices. Real-world implementations include medical imaging equipment and railway traction systems. Microchip Technology's innovative design makes the 2N2329S a trusted component worldwide.
Specifications
- Product Status: Active
- Voltage - Off State: 400 V
- Voltage - Gate Trigger (Vgt) (Max): 800 mV
- Current - Gate Trigger (Igt) (Max): 200 µA
- Voltage - On State (Vtm) (Max): -
- Current - On State (It (AV)) (Max): 220 mA
- Current - On State (It (RMS)) (Max): -
- Current - Hold (Ih) (Max): 2 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 15A @ 60Hz
- SCR Type: Standard Recovery
- Operating Temperature: -65°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-205AD, TO-39-3 Metal Can
- Supplier Device Package: TO-39
