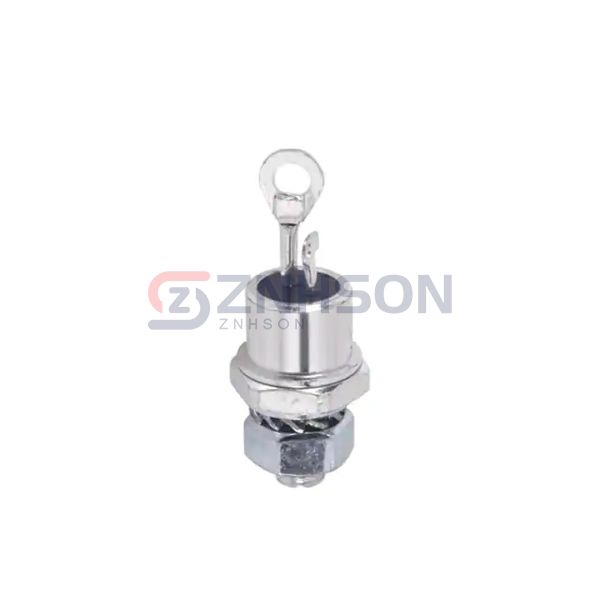

2N684
Solid State Inc.
Solid State Inc.
TO 48 25 AMP SCR
$6.50
Available to order
Reference Price (USD)
1+
$6.50000
500+
$6.435
1000+
$6.37
1500+
$6.305
2000+
$6.24
2500+
$6.175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power control systems with Solid State Inc.'s 2N684 Thyristor - SCR, a leader in Discrete Semiconductor Products. Characterized by its high commutation capability and stable switching parameters, this SCR excels in frequency converters and soft starters. Applications extend to elevator controls, pump systems, and wind power generation. Solid State Inc. delivers superior semiconductor solutions with the 2N684, ensuring energy efficiency and system longevity.
Specifications
- Product Status: Active
- Voltage - Off State: 150 V
- Voltage - Gate Trigger (Vgt) (Max): 2 V
- Current - Gate Trigger (Igt) (Max): 40 mA
- Voltage - On State (Vtm) (Max): 2 V
- Current - On State (It (AV)) (Max): 16 A
- Current - On State (It (RMS)) (Max): 25 A
- Current - Hold (Ih) (Max): 50 mA
- Current - Off State (Max): 2 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 150A @ 60Hz
- SCR Type: Standard Recovery
- Operating Temperature: -65°C ~ 125°C (TJ)
- Mounting Type: Stud Mount
- Package / Case: TO-208AA, TO-48-3, Stud
- Supplier Device Package: TO-48
