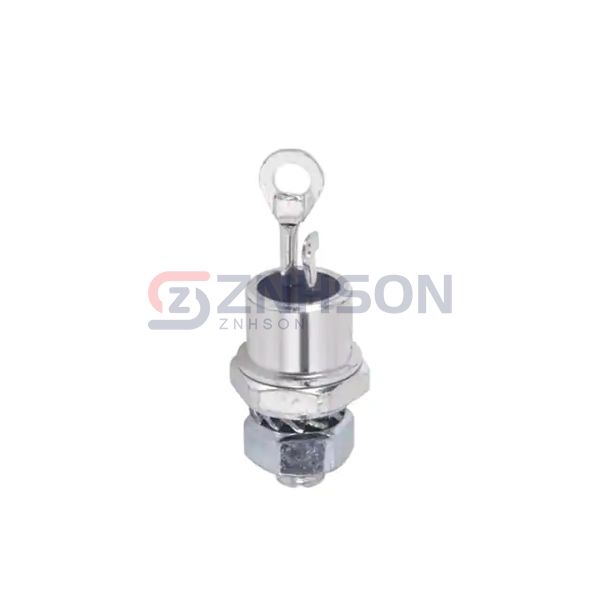

2N691
Solid State Inc.
Solid State Inc.
TO 48 25 AMP SCR
$6.50
Available to order
Reference Price (USD)
1+
$6.50000
500+
$6.435
1000+
$6.37
1500+
$6.305
2000+
$6.24
2500+
$6.175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2N691 Silicon Controlled Rectifier by Solid State Inc. is a premium Discrete Semiconductor Product designed for precision power management. With excellent thermal performance and high blocking voltage, this SCR is perfect for harsh operating conditions. Applications span from renewable energy systems to industrial motor drives and battery chargers. For instance, it's widely used in solar inverters and wind turbine controls. Choose Solid State Inc.'s 2N691 for unmatched reliability and efficiency.
Specifications
- Product Status: Active
- Voltage - Off State: 700 V
- Voltage - Gate Trigger (Vgt) (Max): 2 V
- Current - Gate Trigger (Igt) (Max): 40 mA
- Voltage - On State (Vtm) (Max): 2 V
- Current - On State (It (AV)) (Max): 16 A
- Current - On State (It (RMS)) (Max): 25 A
- Current - Hold (Ih) (Max): 50 mA
- Current - Off State (Max): 2 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 150A @ 60Hz
- SCR Type: Standard Recovery
- Operating Temperature: -65°C ~ 125°C (TJ)
- Mounting Type: Stud Mount
- Package / Case: TO-208AA, TO-48-3, Stud
- Supplier Device Package: TO-48
