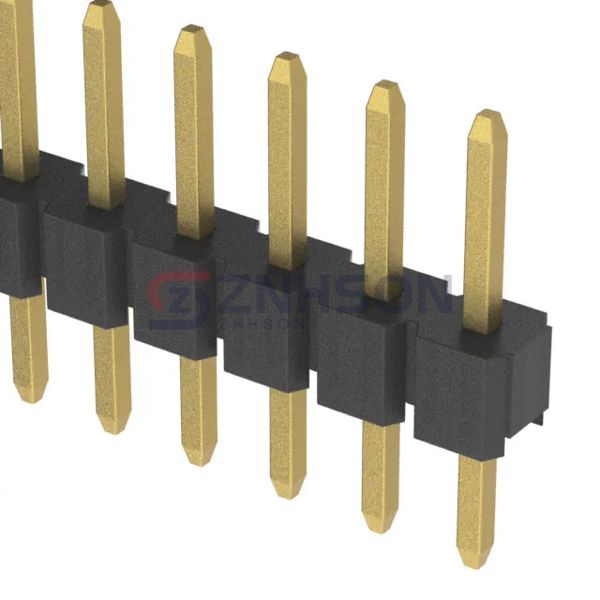

2PH1-12-UA
Adam Tech
Adam Tech
CONN HEADER VERT 12POS 2MM
$0.36
Available to order
Reference Price (USD)
1+
$0.31000
10+
$0.29400
100+
$0.20580
500+
$0.17640
1,000+
$0.14700
5,000+
$0.12600
10,000+
$0.11760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 2PH1-12-UA rectangular connector header from Adam Tech, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 2PH1-12-UA adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Adam Tech guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.154" (3.91mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.343" (8.70mm)
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250VAC
Related Products
Preci-Dip
852-10-074-30-001101
Amphenol ICC (FCI)
77311-402-25LF
Oupiin
2011-1X05G00SH010
Samtec Inc.
TSM-108-01-L-DH-P-TR
Samtec Inc.
TFM-120-02-S-D-K-TR
Samtec Inc.
TSM-102-03-S-SV-LC
Samtec Inc.

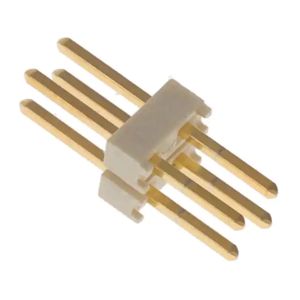

HTSW-102-08-G-D
Samtec Inc.
TSM-120-01-F-SV
Samtec Inc.

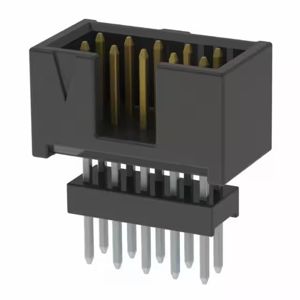

ZSS-105-02-L-D-550
