2PH1R-07-UA
Adam Tech
Adam Tech
CONN HEADER R/A 7POS 2MM
$0.33
Available to order
Reference Price (USD)
1+
$0.28000
10+
$0.26300
100+
$0.18380
500+
$0.15750
1,000+
$0.13125
5,000+
$0.11250
10,000+
$0.10500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

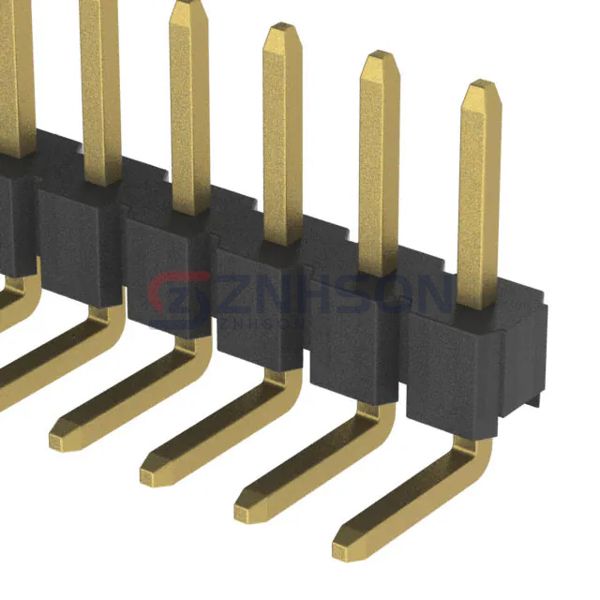

Enhance your electronic assemblies with the 2PH1R-07-UA rectangular connector header from Adam Tech. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 2PH1R-07-UA meets the highest industry standards. Adam Tech provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.154" (3.91mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250VAC
