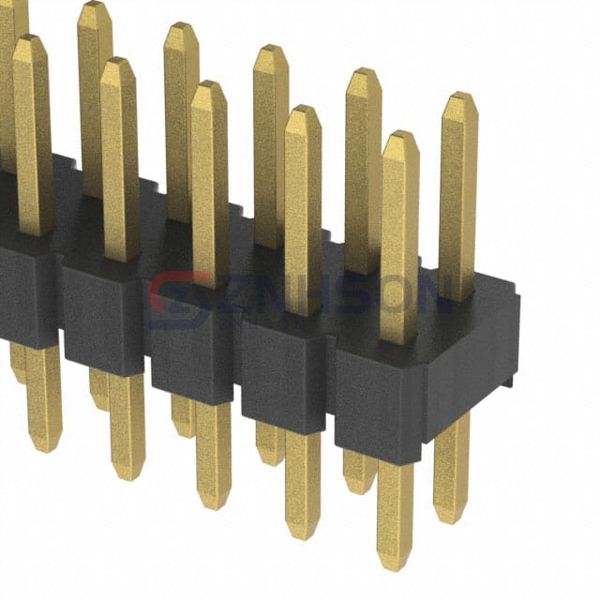

2PH2-16-UA
Adam Tech
Adam Tech
CONN HEADER VERT 16POS 2MM
$0.42
Available to order
Reference Price (USD)
1+
$0.36000
10+
$0.33600
100+
$0.23520
500+
$0.20160
1,000+
$0.16800
5,000+
$0.14400
10,000+
$0.13440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2PH2-16-UA by Adam Tech is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Adam Tech delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.154" (3.91mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.343" (8.70mm)
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250VAC
