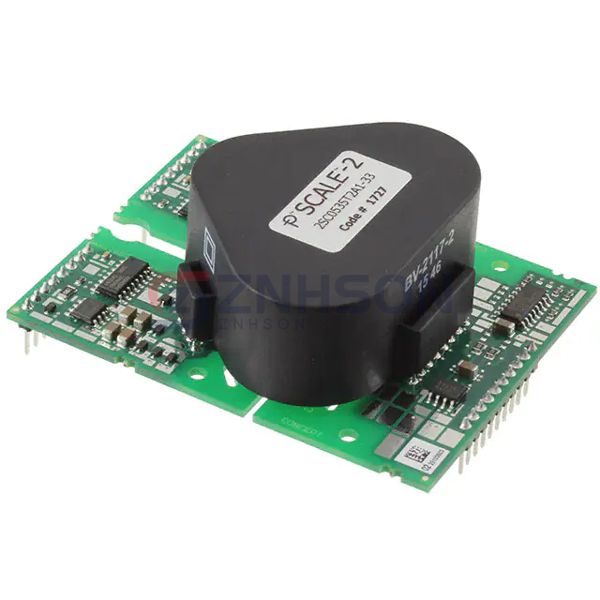

2SC0535T2A1-33
Power Integrations
Power Integrations
IC GATE DRVR HI/LOW SIDE MODULE
$202.93
Available to order
Reference Price (USD)
1+
$191.44000
10+
$176.12000
40+
$153.15025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Power Integrations's 2SC0535T2A1-33, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The 2SC0535T2A1-33 demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Active
- Driven Configuration: High-Side or Low-Side
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: IGBT
- Voltage - Supply: 14.5V ~ 15.5V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): 35A, 35A
- Input Type: -
- High Side Voltage - Max (Bootstrap): 3300 V
- Rise / Fall Time (Typ): 20ns, 25ns
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: Module
- Supplier Device Package: Module
