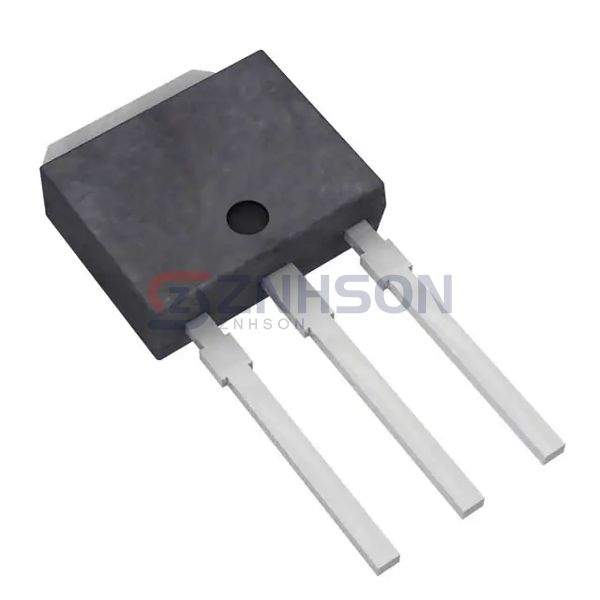

2SD1803T-H
onsemi
onsemi
TRANS NPN 50V 5A TP
$0.36
Available to order
Reference Price (USD)
1,000+
$0.44955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2SD1803T-H from onsemi is a high-performance Bipolar Junction Transistor (BJT) designed for a wide range of electronic applications. This discrete semiconductor product offers excellent amplification and switching capabilities, making it ideal for both low-power and high-power circuits. With its robust construction and reliable performance, the 2SD1803T-H ensures long-term durability and efficiency. Whether you're designing audio amplifiers, power supplies, or motor control systems, this BJT transistor delivers consistent results. Explore the versatility of 2SD1803T-H and enhance your electronic projects with this top-quality component from onsemi.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 5 A
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Vce Saturation (Max) @ Ib, Ic: 400mV @ 150mA, 3A
- Current - Collector Cutoff (Max): 1µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 500mA, 2V
- Power - Max: 1 W
- Frequency - Transition: 180MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
- Supplier Device Package: TP
Related Products
Renesas Electronics America Inc
2SA1221-T-AZ
Nexperia USA Inc.

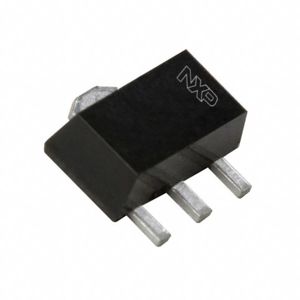

PBHV8540X,115
Microchip Technology
JAN2N3737UB/TR
onsemi
MMBT4124LT1G
Nexperia USA Inc.
PBSS4240V,115
Harris Corporation
2N6491
Micro Commercial Co
BCX70J-TP
onsemi
BC327-016G
Microchip Technology

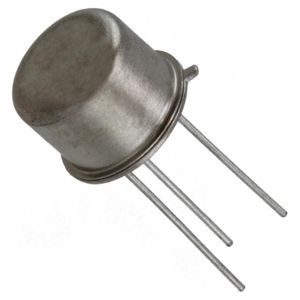

JANTXV2N3637
