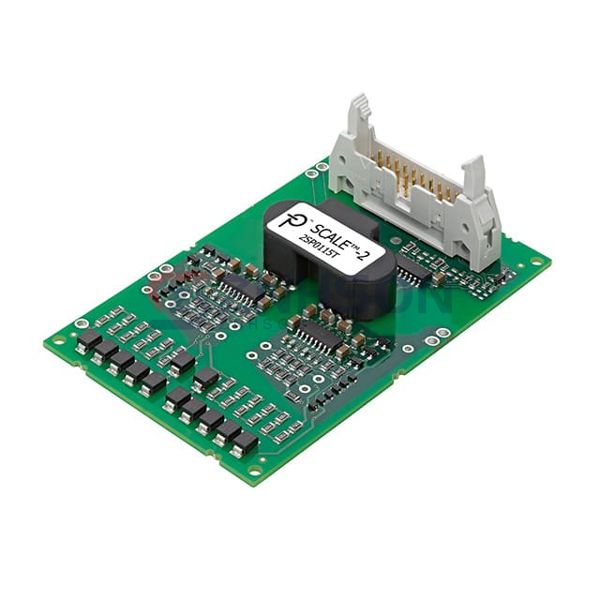

2SP0115T2B0-06
Power Integrations

Power Integrations
IC GATE DRVR HALF-BRIDGE MODULE
$105.00
Available to order
Reference Price (USD)
1+
$99.06000
10+
$96.01000
40+
$88.85050
100+
$76.20000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power Integrations's 2SP0115T2B0-06 establishes new standards for automotive PMIC - Gate Driver ICs with ASIL-D functional safety certification. This IC classification incorporates: 1) Redundant fault detection circuits, 2) On-chip LDO for auxiliary power, and 3) ISO 26262-compliant failure modes. Automotive applications range from 48V mild-hybrid BSG systems to steer-by-wire and brake-by-wire architectures. Benchmark tests show the 2SP0115T2B0-06 reducing ECU wake-up time by 200ms in Volkswagen's MEB platform, while preventing latch-up during load-dump transients up to 45V. The driver also enables <1 A standby current for always-on ADAS modules.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: IGBT
- Voltage - Supply: 14.5V ~ 15.5V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): 8A, 15A
- Input Type: -
- High Side Voltage - Max (Bootstrap): 600 V
- Rise / Fall Time (Typ): 5ns, 10ns
- Operating Temperature: -20°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: Module
- Supplier Device Package: Module
