3-2331102-1
TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors

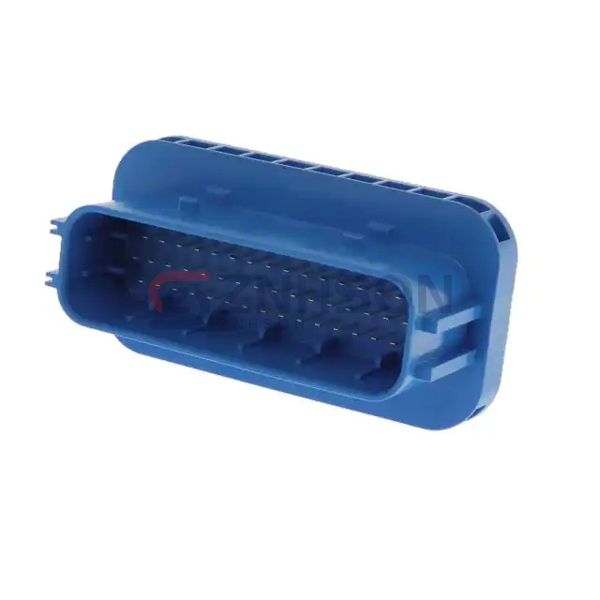

TAB HEADER 46POS.
$28.12
Available to order
Reference Price (USD)
1+
$28.12000
500+
$27.8388
1000+
$27.5576
1500+
$27.2764
2000+
$26.9952
2500+
$26.714
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3-2331102-1 male pin header by TE Connectivity Deutsch Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity Deutsch Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.157" (4.00mm)
- Number of Positions: 46
- Number of Rows: 3
- Row Spacing - Mating: 0.177" (4.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.421" (10.69mm)
- Overall Contact Length: -
- Insulation Height: 1.394" (35.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Silver
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide, Mounting Flange, Sealed
- Operating Temperature: -40°C ~ 120°C
- Ingress Protection: IP68/IP6K9K
- Material Flammability Rating: -
- Insulation Color: Blue
- Current Rating (Amps): 23A
- Voltage Rating: 60VDC
