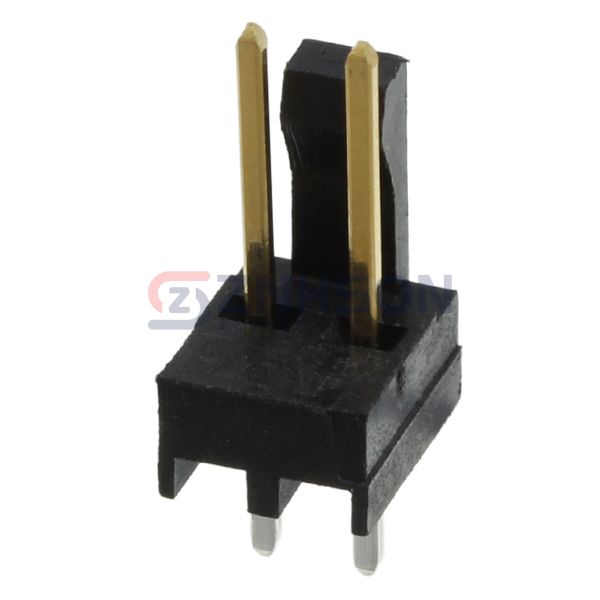

3-647078-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 2POS 2.54MM
$1.45
Available to order
Reference Price (USD)
5,000+
$0.80831
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 3-647078-2 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 3-647078-2 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.290" (7.37mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: 0.550" (13.97mm)
- Insulation Height: 0.347" (8.81mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA4T), Nylon 4T
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC
