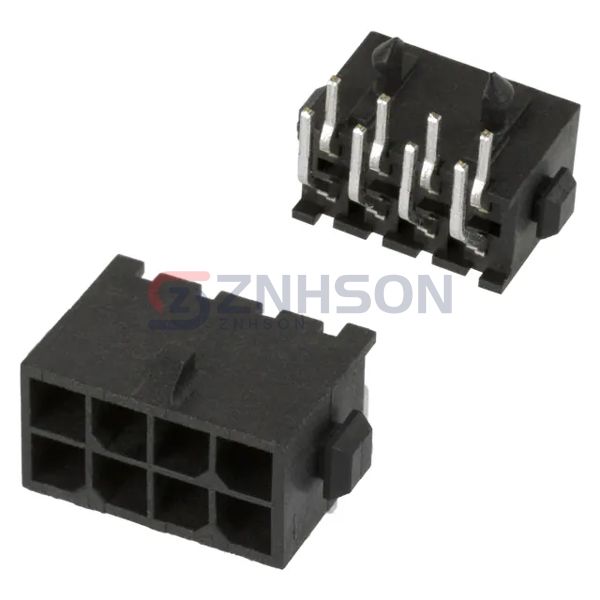

3-794618-8

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER R/A 8POS 3MM

Datasheet:

3-794618-8 Datasheet

$2.40

Available to order

Reference Price (USD)

$1.87000

10+

$1.70400

234+

$1.47893

702+

$1.25387

1,170+

$1.09311

5,148+

$0.98381

10,062+

$0.96452

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Enhance your electronic assemblies with the 3-794618-8 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 3-794618-8 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.118" (3.00mm)
Number of Positions: 8
Number of Rows: 2
Row Spacing - Mating: 0.118" (3.00mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Locking Ramp
Contact Length - Mating: -
Contact Length - Post: -
Overall Contact Length: -
Insulation Height: 0.290" (7.37mm)
Contact Shape: Square
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polyamide (PA), Nylon
Features: Board Lock
Operating Temperature: -40°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): Varies by Wire Gauge
Voltage Rating: 250V

Shopping cart

3-794618-8

Reference Price (USD)

Specifications

Related Products

77317-104-46LF

FTSH-120-01-FM-DV-K-P-TR

15-91-1122

2-826629-0

BKT-161-05-F-V-A-P

M225-5201046

0022032146

FTSH-104-04-F-DV-TR

M80-5411222

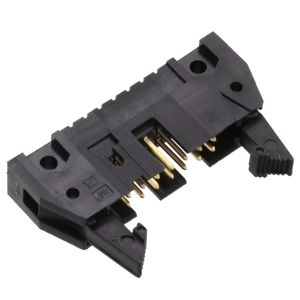

5499345-2
