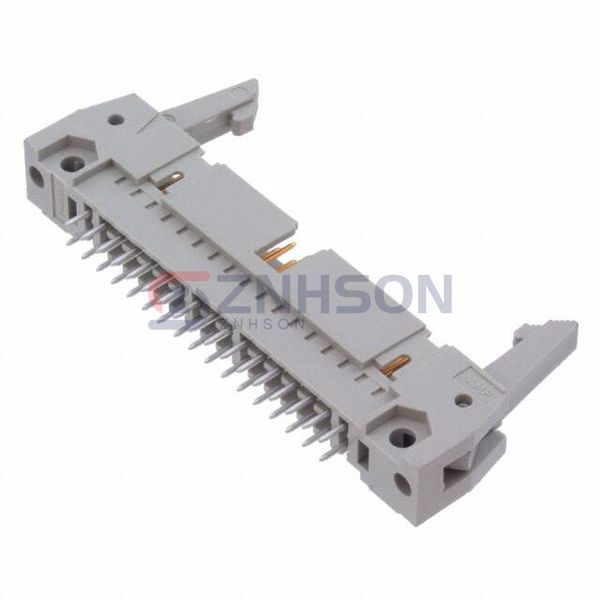

3-828590-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 34POS 2.54MM
$2.61
Available to order
Reference Price (USD)
1+
$2.61000
500+
$2.5839
1000+
$2.5578
1500+
$2.5317
2000+
$2.5056
2500+
$2.4795
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3-828590-4 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.246" (6.25mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.652" (16.56mm)
- Insulation Height: 0.346" (8.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 31.5µin (0.80µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
